Blow Bars For Sandvik Crusher Wear Parts Text

Crusher Wear Blow Bars Introduction

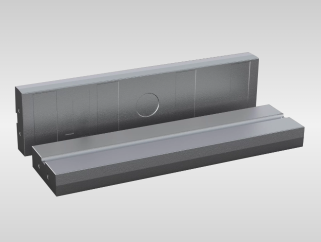

Blow bars are thick slabs of metal, typically made of a chrome mixture, designed for breaking apart materials like asphalt, concrete, and limestone. They play a critical role in the crushing process of a horizontal shaft impactor. The materials used for blow bars are selected based on the function of the impact crusher. When inserted into the rotor of horizontal impact crushers, the blow bars rotate at high speeds, repeatedly striking the material. This continuous action fractures the material until it reaches the appropriate size to pass through the impact crusher chamber.

Crusher Wear Blow Bars Parameters

Crusher Wear Blow Bars Application

M200 (Manganese Steel): Suitable for large feed size, low-abrasive stones (e.g., limestones), with input size ≥800mm. It can contain scrap iron.

M200TIC (Manganese Steel + TIC): Similar to M200 but designed for applications where a longer wear life is required.

550M (Martensitic Steel): Suitable for medium feed size, low to medium abrasive materials like limestones, asphalt, concrete, and building rubble with steel rebars or a small amount of unbreakable objects.

MC Series (Martensitic Steel + Ceramic)：Used for materials with no iron content, input size >300mm. Ideal for primary crushing and recycling of building rubble with low to medium iron content, concrete, and natural stones.

MC+ Series (Martensitic Steel + Ceramic): Similar to MC series but designed for applications requiring a longer wear life.

MY Series (Martensitic Steel + Ceramic – New Generation): Similar to MC+ series but designed for applications requiring an even longer wear life.

650C (High Chrome Steel): Suitable for small feed size, medium to high abrasive but low-strength materials like limestones, asphalt, concrete, and building rubble without steel rebars or unbreakable objects.

CC Series (High Chrome + Ceramic): Similar to 650C but designed for applications where a longer wear life is required.

CC+ Series (High Chrome + Ceramic – New Generation): Suitable for small feed size, high abrasive, and high-strength materials like gravels and granites, without unbreakable objects.

Why Choose SAIKUANG Crusher Wear Blow Bars

1.

2.

3.

4.

5.

Crusher Wear Blow Bars Details
